250 Microliter Reservoir

Type: Interface
Compatible materials: PMMA, PC, COP

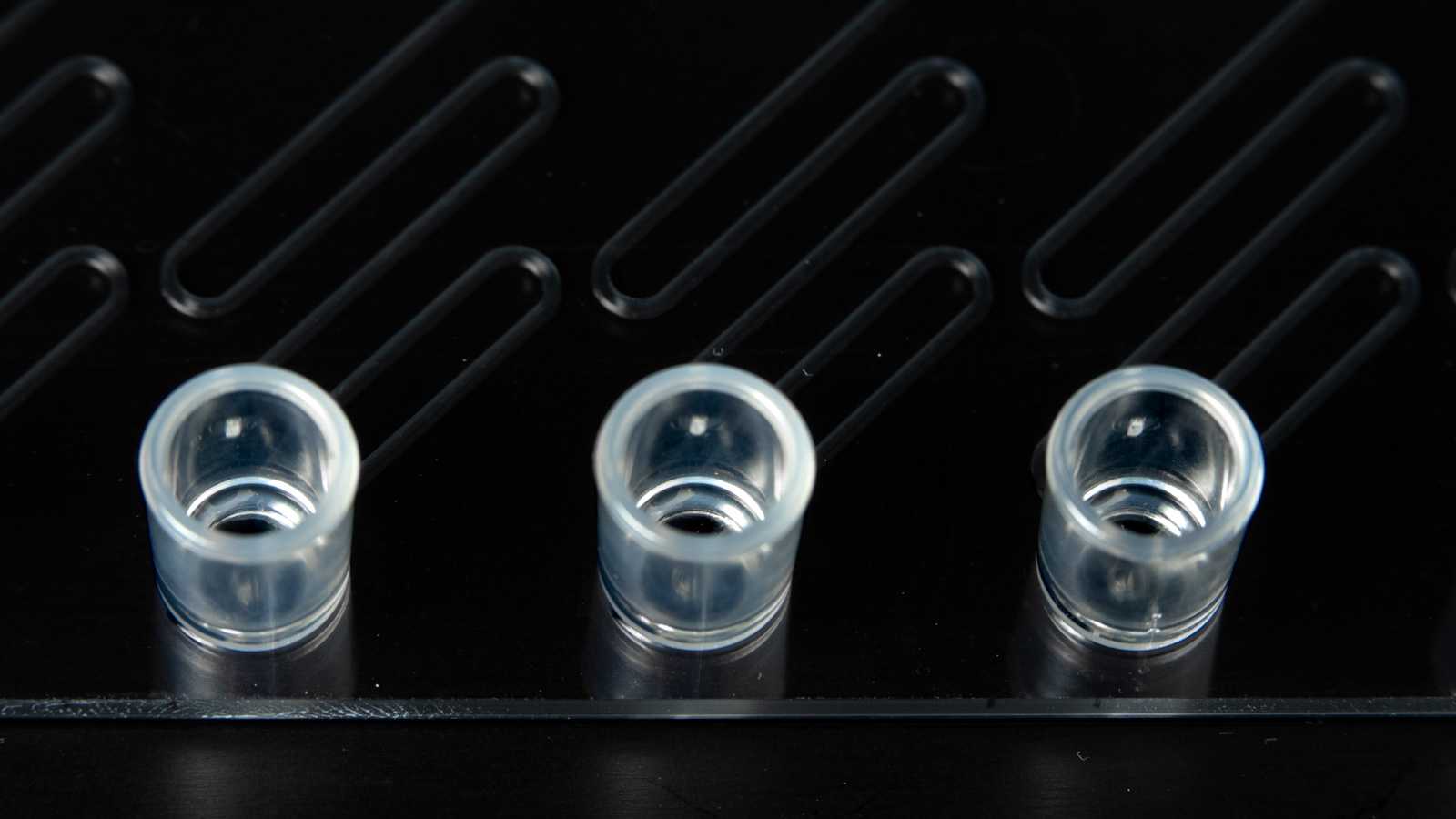

Three 250 microliter reseroivrs along the edge of a microfluidic device.

Introduction link to Introduction section

A conical bottom sample reservoir for gravity-driven flow or interfacing with an external manifold. Sized to fit within spacing standards for 96-well microplates.

Technical summary link to Technical summary section

Overall dimensions: 8.7 x 8.7 x 10.0 mm
Body material: PMMA, PC, COP
Working volume: 250 µl

Resources link to Resources section

Design Guide
