1/4-28 Port

Type
Interface
Compatible materials
PMMA, PC, COP

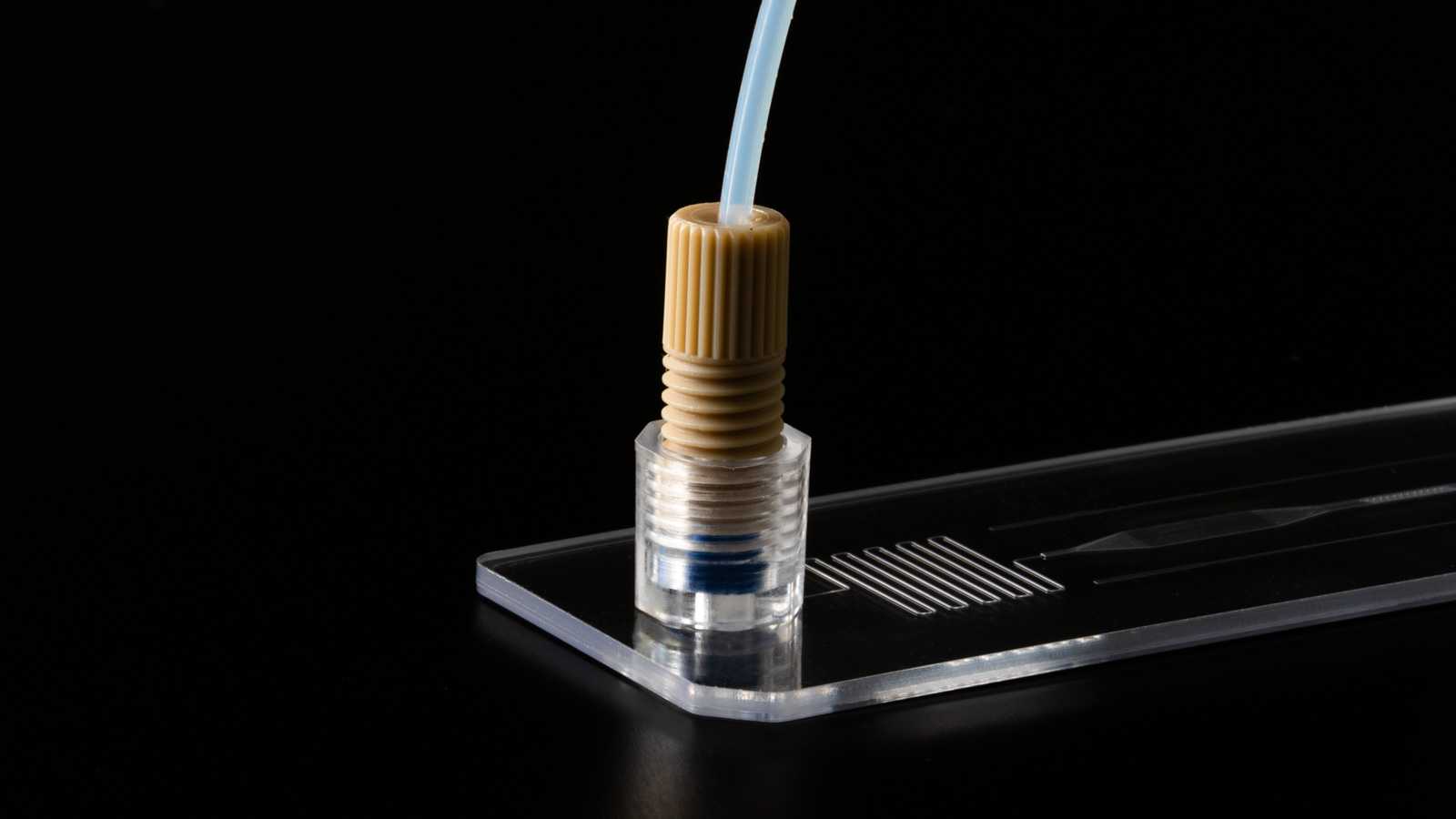

A slide format microfluidic device with a 1/4-28 port connected to tubing using a nut.

Introduction link to Introduction section

A flat-bottom threaded port designed to mate with standard 1/4-28 capillary tube fittings. The 1/4-28 port is a great choice for applications that demand minimal dead volume and high pressure tolerance.

Technical summary link to Technical summary section

Overall dimensions
8.6 x 8.6 x 8.8 mm
Body material
PMMA, PC, COP
Recommended installation torque
0.160 N-m (22.5 in-oz)
