Unlock automatic one-week lead times and lower cost by starting from a Core Format design template.
The slide template is best for:
- The lowest cost per device
- Compatibility with standard lab microscopes
| Dimension | Value |
|---|---|
| Width | 75.00 mm |
| Depth | 25.00 mm |
| Thickness | 1.50 mm |

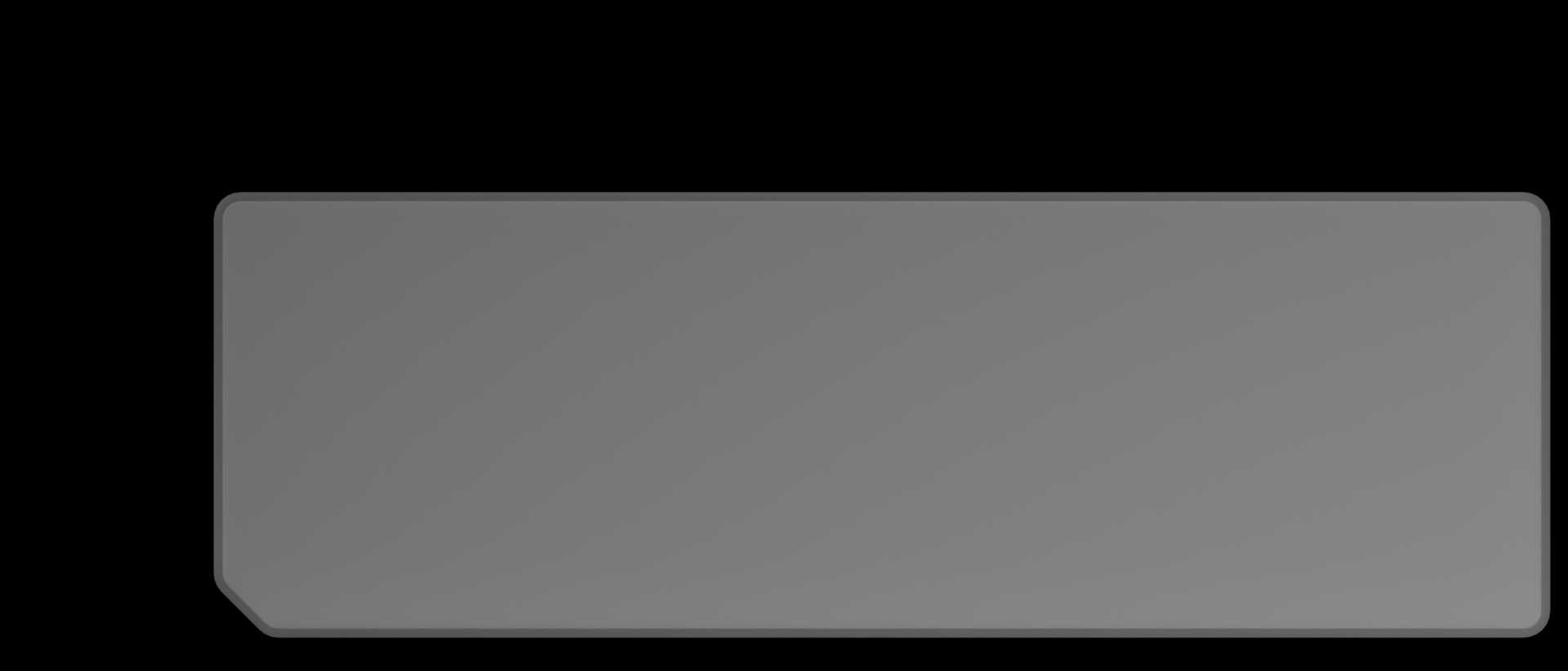

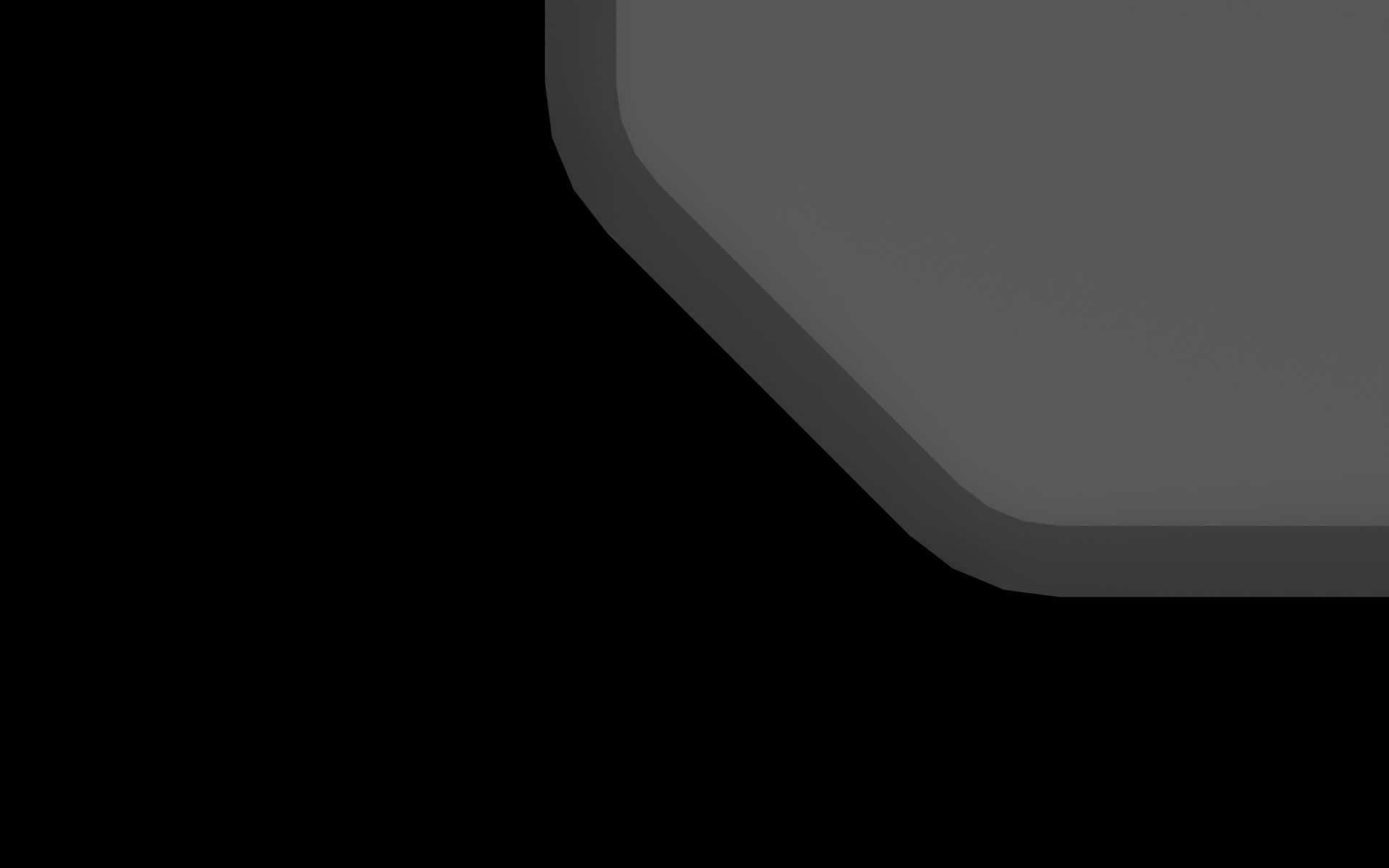

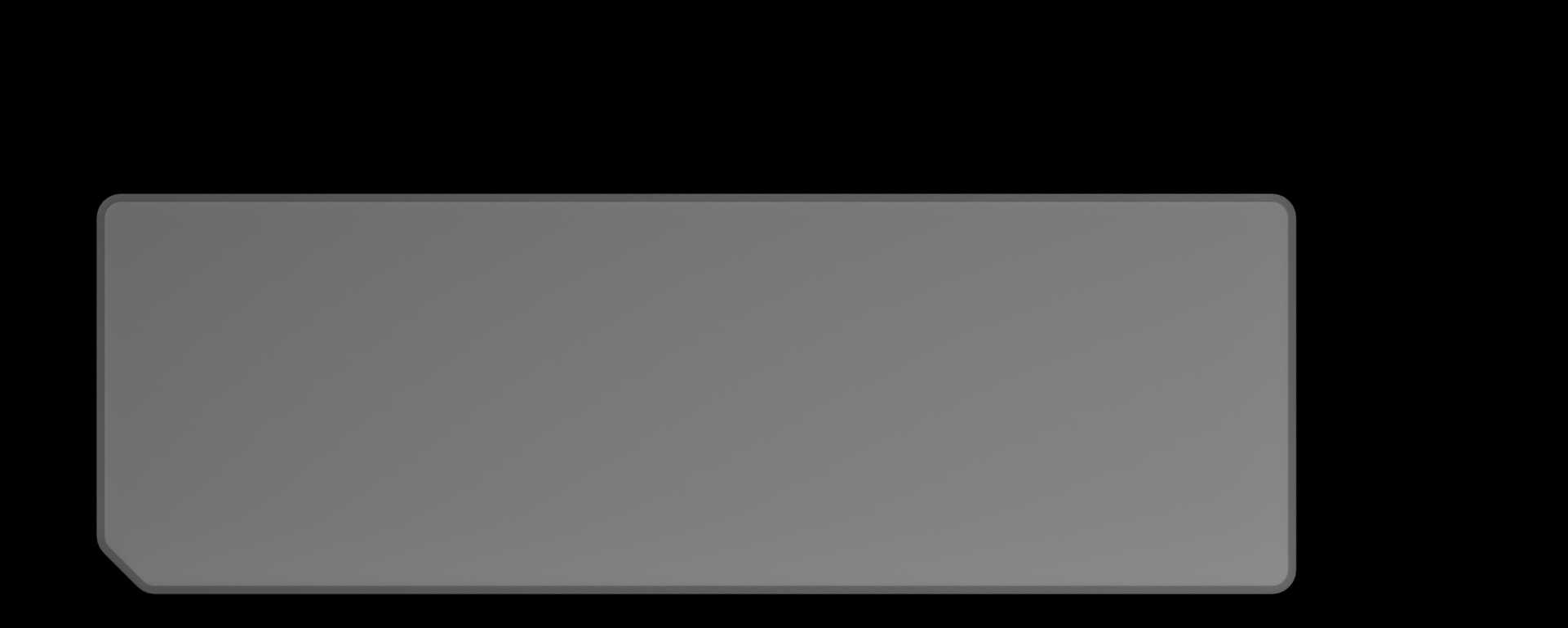

Top view

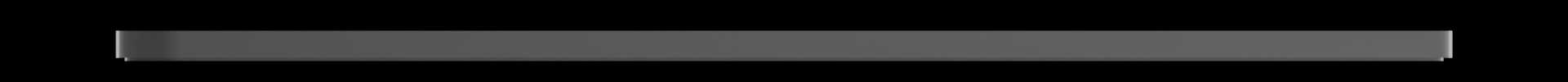

Side view
The double slide template is best for:
- A balance of complexity and device cost
- More room for interfaces and hardware
| Dimension | Value |
|---|---|
| Width | 75.00 mm |
| Depth | 50.00 mm |
| Thickness | 1.50 mm |

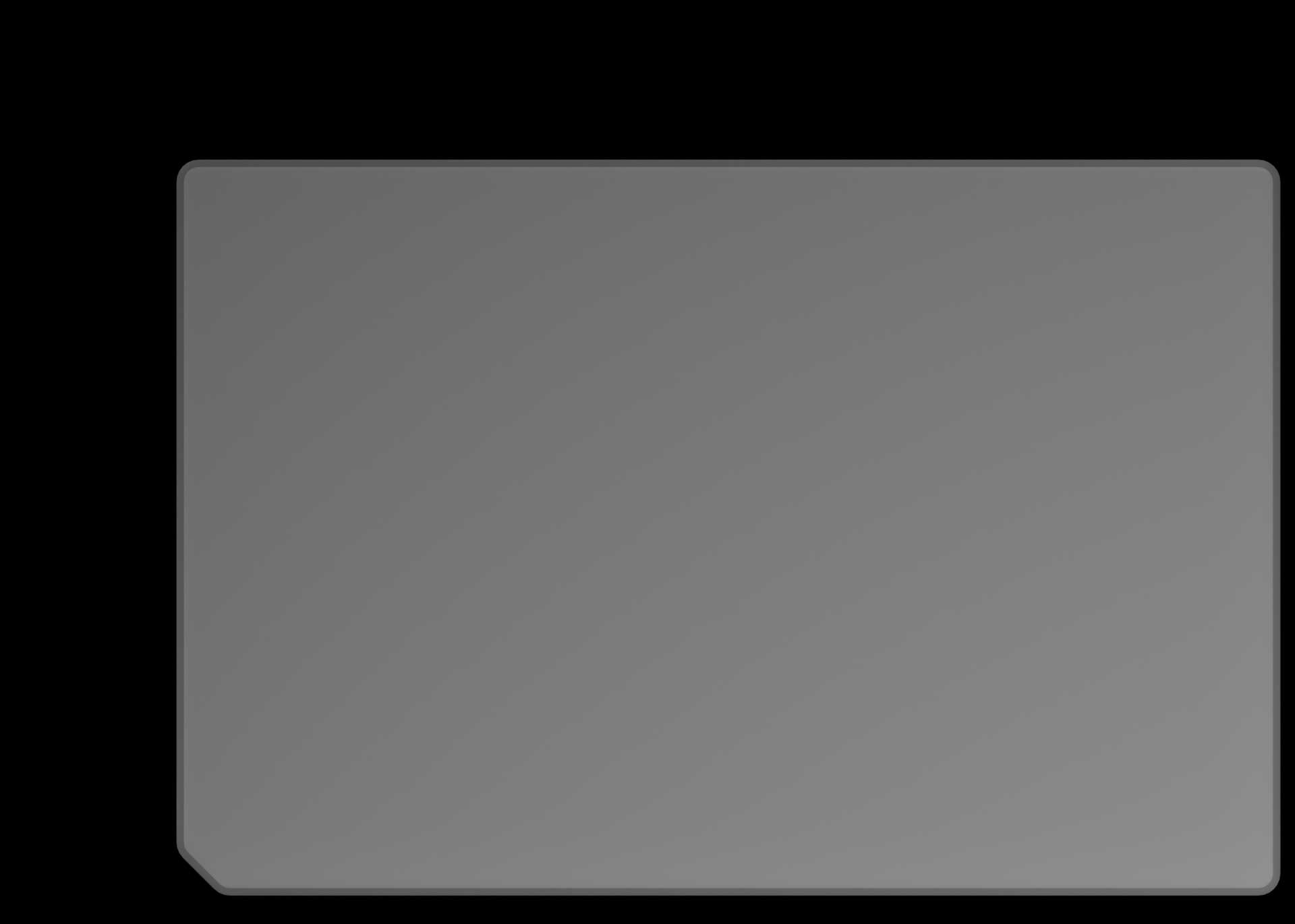

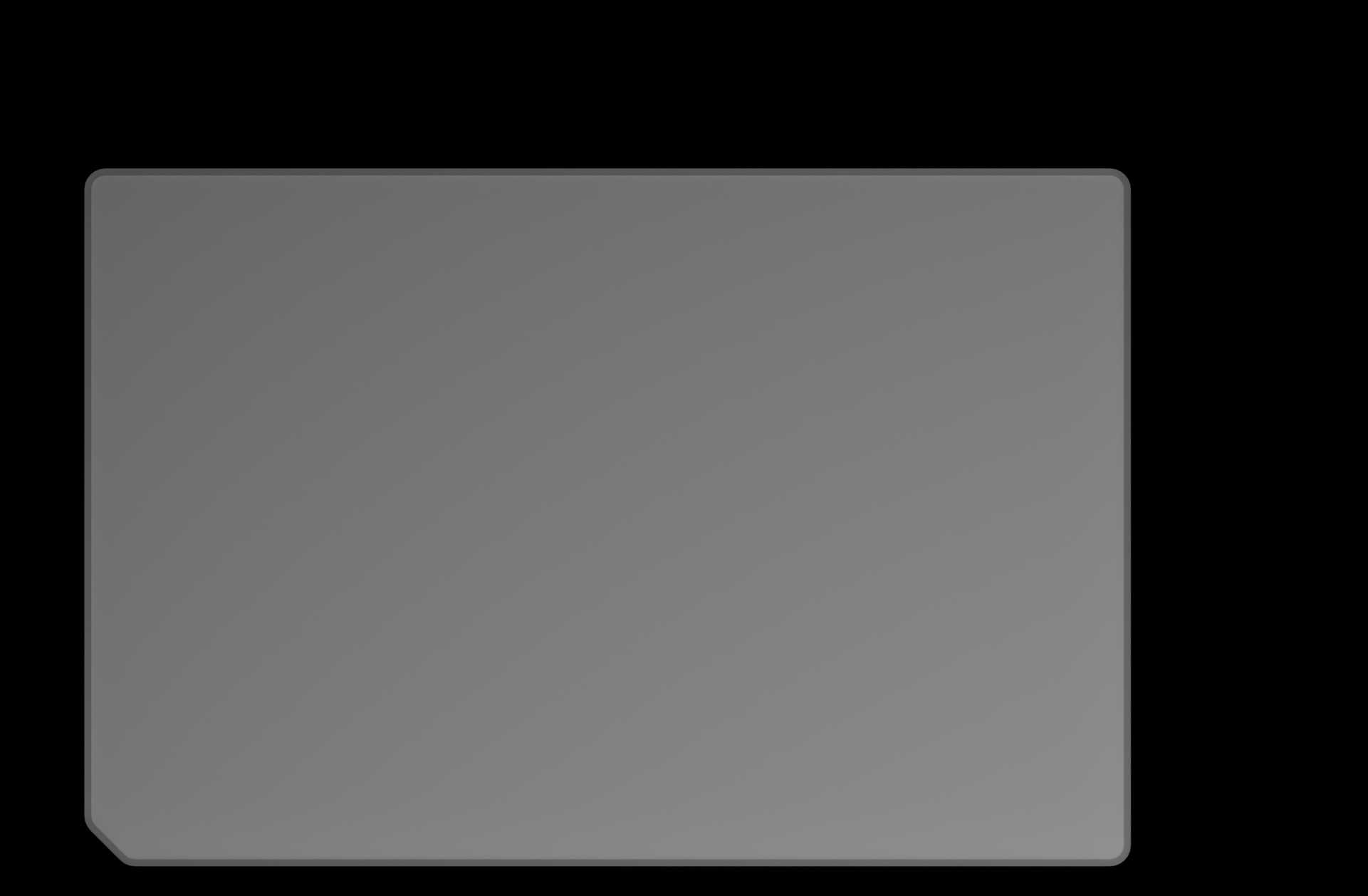

Top view

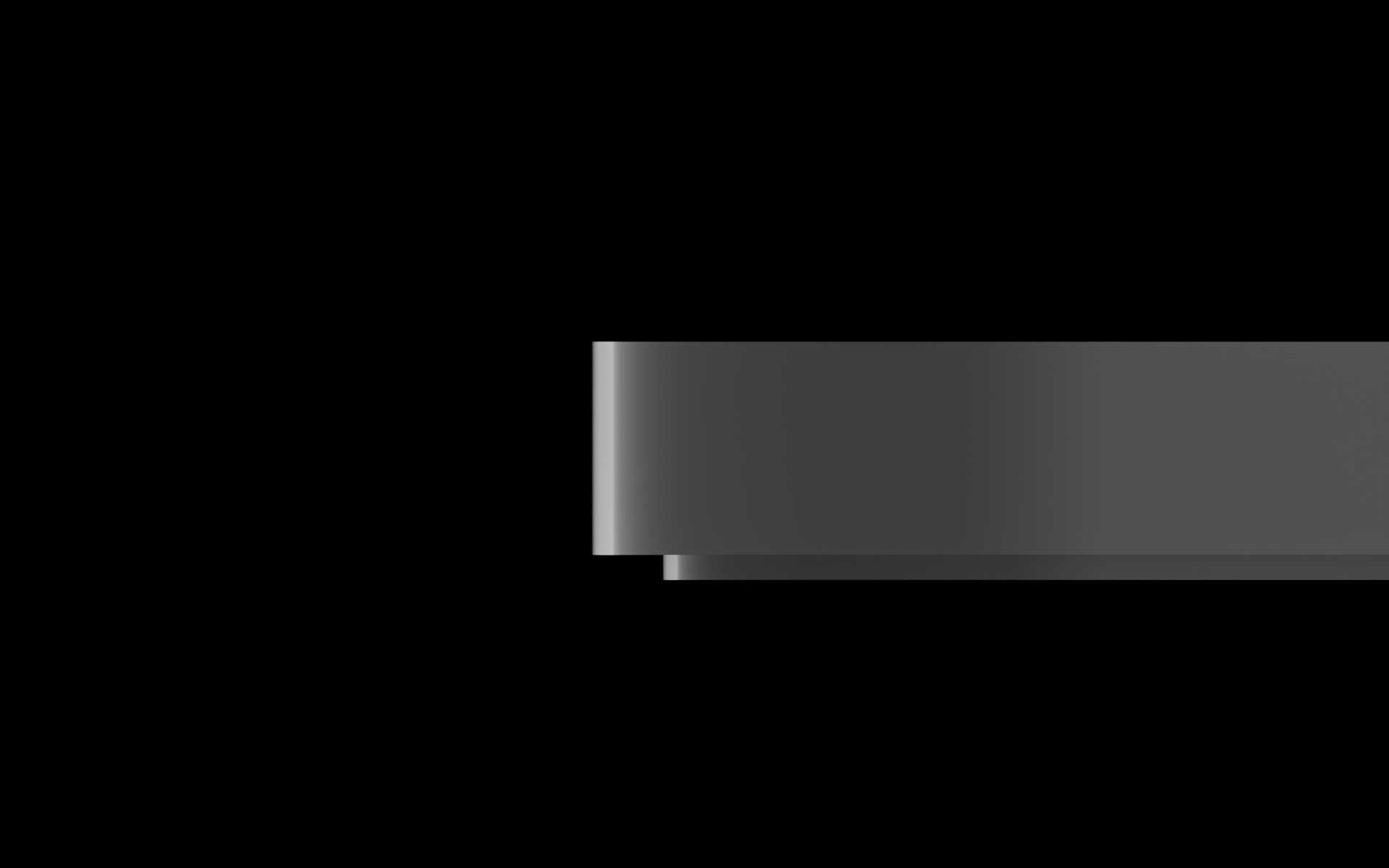

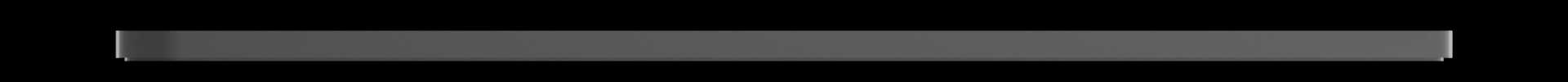

Side view
The microplate template combines a 75 mm x 111 mm fluidic layer with a laser-welded microplate frame that matches the standard defined by the Society for Laboratory Automation and Screening. It allows you to integrate your custom device with microplate-compatible lab equipment, such as automated liquid handlers.
| Dimension | Value |
|---|---|
| Width | 75.00 mm |
| Depth | 111.00 mm |
| Thickness | 2.00 mm |

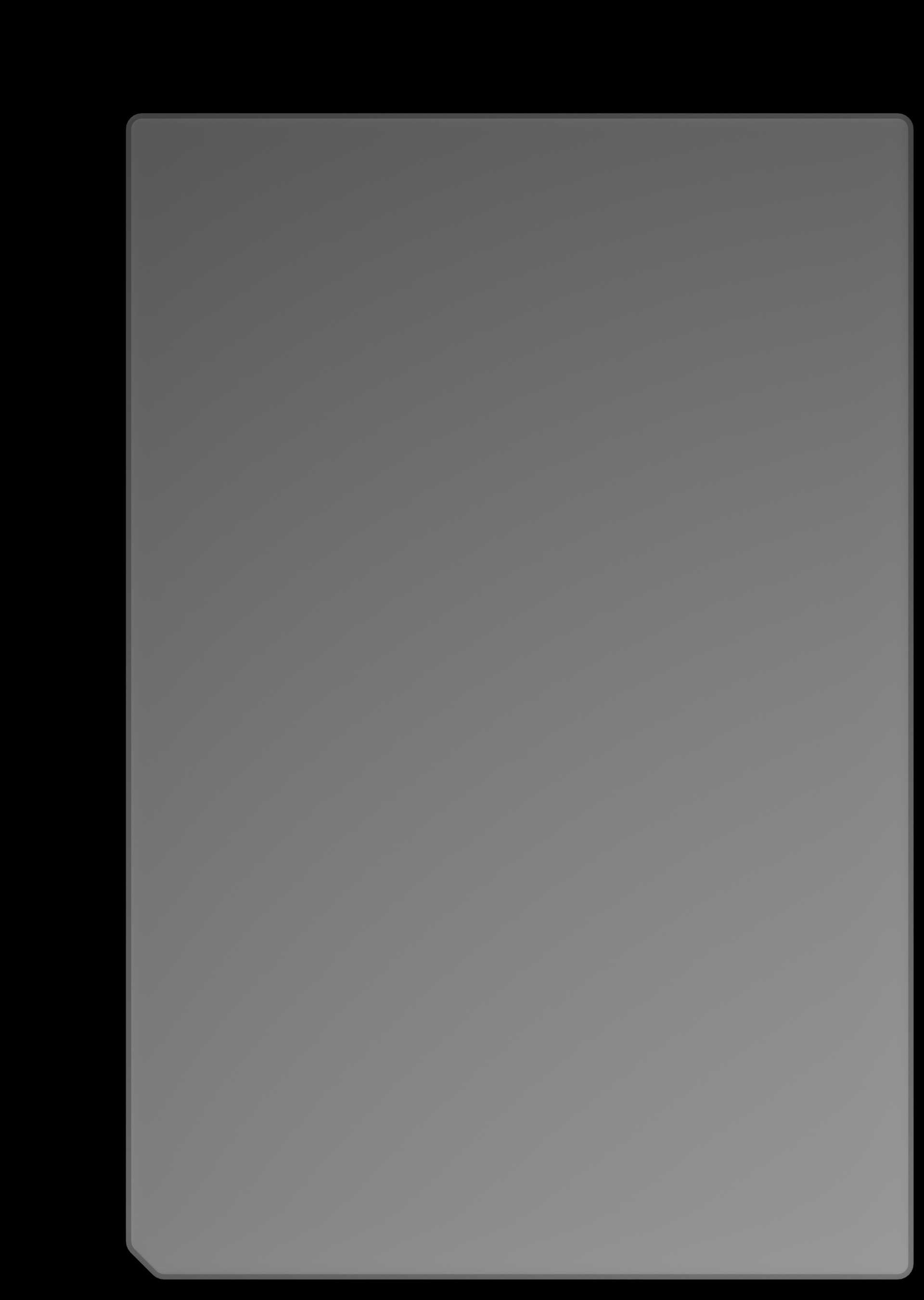

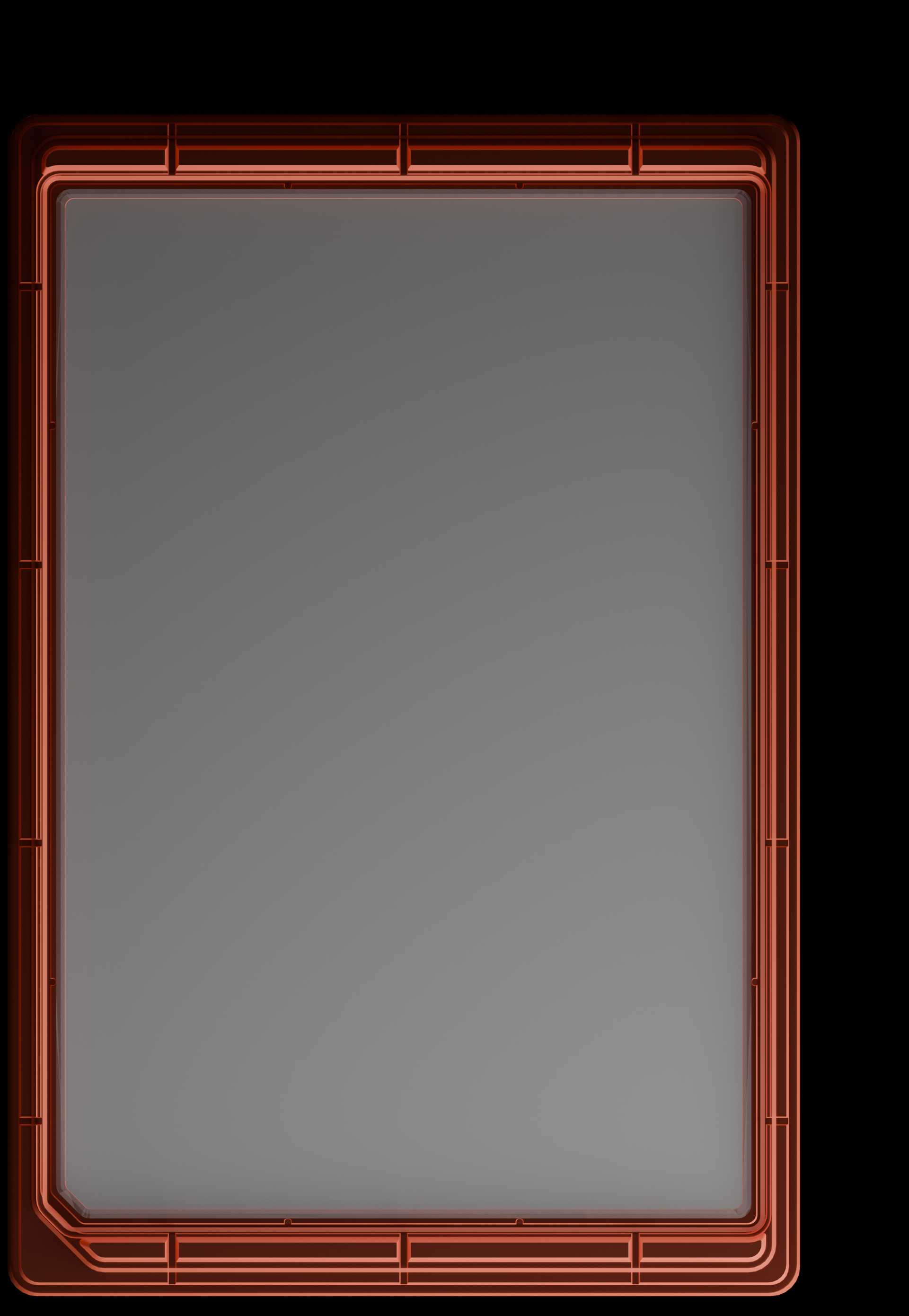

Top view

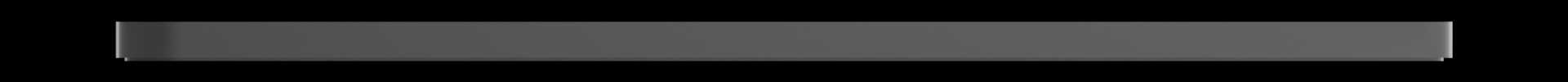

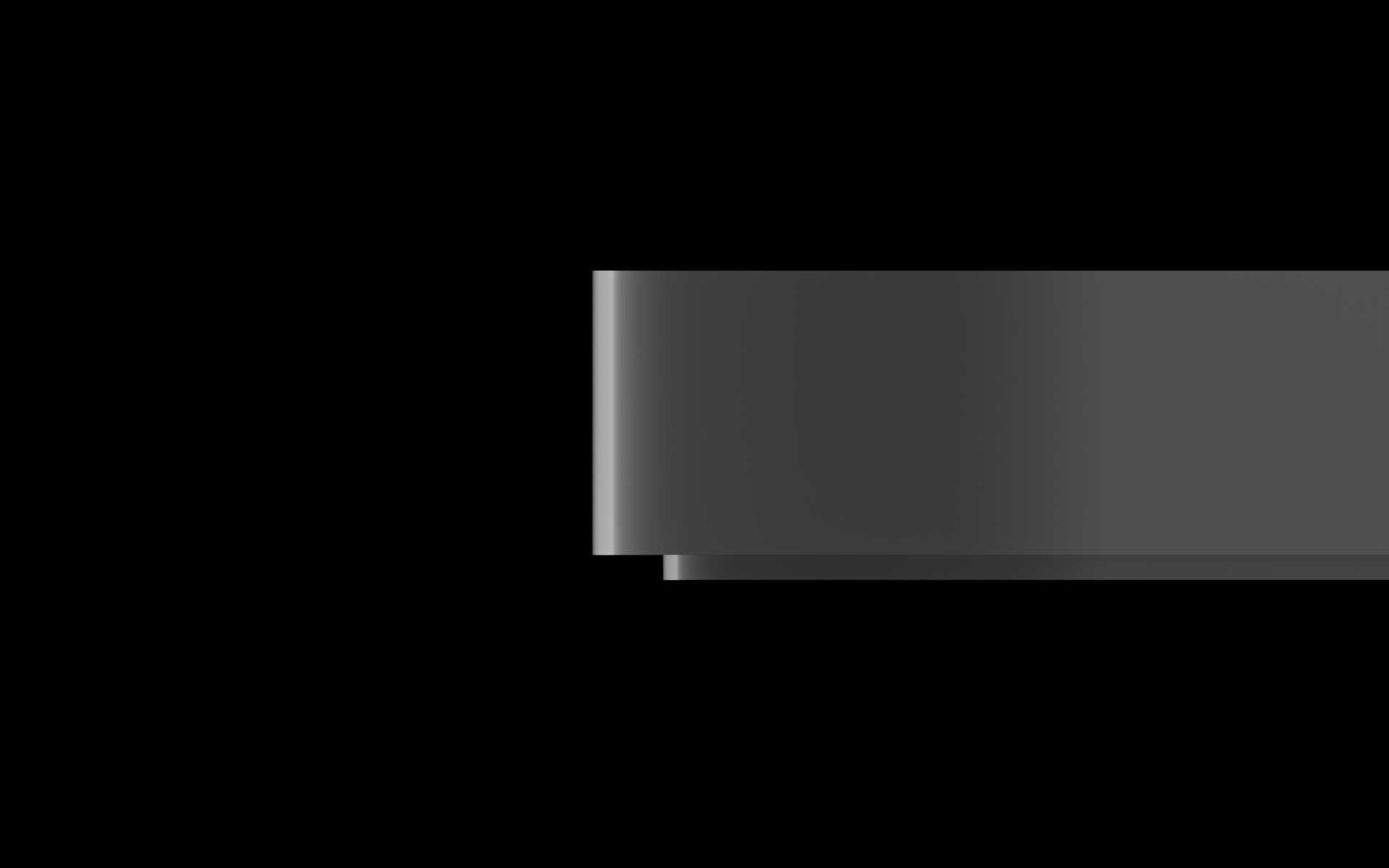

Side view
